K082198

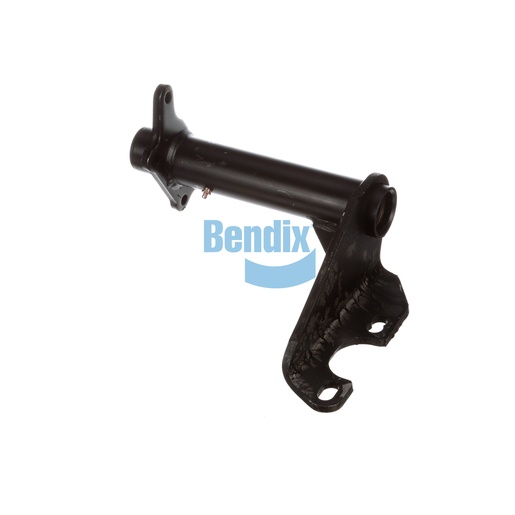

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component designed to enhance the performance of your vehicle's foundation drum brakes. This assembly features a robust design with nylon bushings for durability and a secure fit, ensuring optimal function within the braking system. Its precise engineering allows for straightforward installation, making it an ideal choice for busy fleet operators. By choosing this assembly, you are investing in the safety and efficiency of your vehicle, making it a necessary upgrade for heavy-duty applications. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring you receive the highest quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.63 lb
