K081701

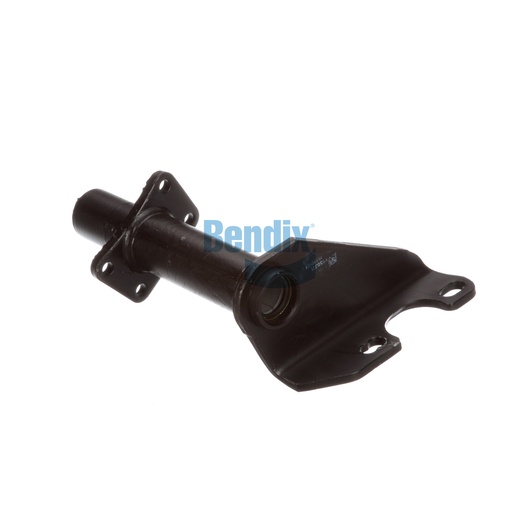

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is a key element of the foundation drum brake system, designed to ensure that all components are securely held in place for optimal performance. With a full arm style and a combination of nylon and bronze bushings, this assembly is built for durability and resilience against wear. Its single gusset design not only adds strength but also allows for straightforward installation, making it a preferred choice among professionals. Ensuring proper alignment of brake components, this bracket contributes to the overall efficiency of your braking system. For the highest quality Bendix OEM parts, choose Source One Parts Center to keep your commercial vehicle operating at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.27 lb
