K081603

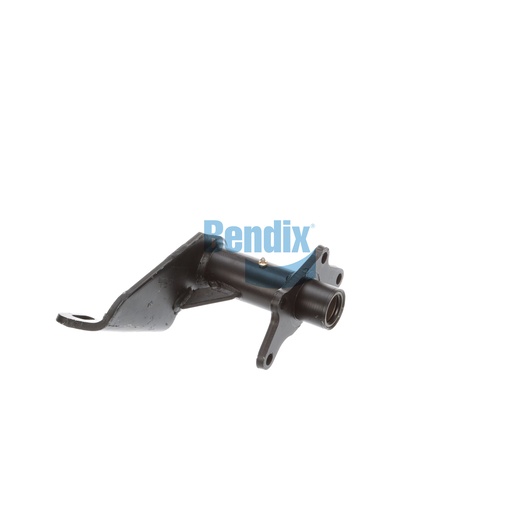

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential part of your foundation drum brake system, delivering the reliability and durability that Bendix is renowned for. This assembly, made in the USA, features a distinctive scalloped arm design that not only enhances its structural integrity but also allows for better alignment within the brake system. With nylon and bronze bushings, it ensures smooth operation while minimizing wear, a crucial aspect for maintaining the efficiency of your brakes. The assembly's dimensions, including a camshaft bracket angle of 308° CW, provide versatility for various vehicle configurations. When you choose genuine Bendix OEM parts, you can rest assured of their quality. Source One Parts Center is the ideal place to find such parts, providing expertise and a wide selection to meet your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
308° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.49 lb
