$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

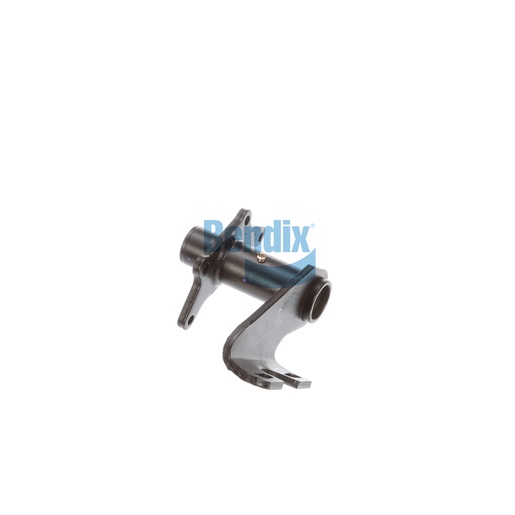

Enhance the braking system of your commercial vehicle with this high-quality Bracket Assembly from Bendix. Engineered for superior performance, it features a scalloped arm style and durable nylon bushings that offer long-lasting reliability. With a centerline length of 10.03 inches and a camshaft bracket angle of 314° CCW, this assembly is designed for precise alignment and fitment. The slack length of 5.50 inches allows for flexibility in installation, making it suitable for a variety of applications. Trust Source One Parts Center for your genuine Bendix OEM parts, ensuring you receive the best for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.03
Camshaft Bracket Angle
314° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.7 lb
