$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

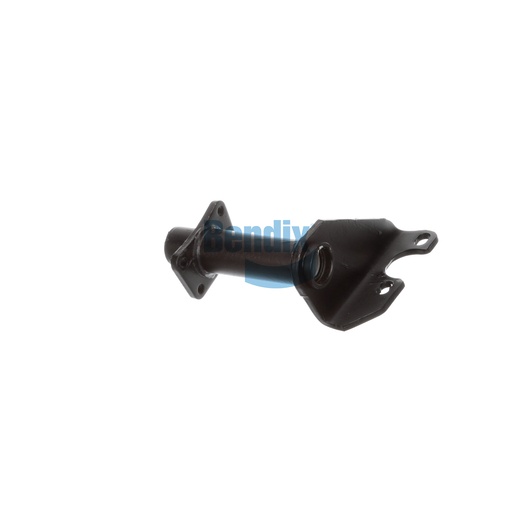

The Bendix Bracket Assembly is a crucial part of the drum brake system in commercial vehicles, engineered for robust performance and reliability. This assembly features a full arm style with single gusset construction that enhances its strength, making it capable of enduring the rigorous demands of heavy-duty applications. The nylon bushings allow for smooth operation while reducing wear over time. With a camshaft bracket angle of 80° CW and adjustable slack lengths between 5.50 to 6.00 inches, it provides flexibility for various installations. Weighing 12.1 lbs, it is easy to install while maintaining a sturdy performance. For sourcing genuine Bendix parts, Source One Parts Center is the best choice, delivering quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.1 lb
