$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

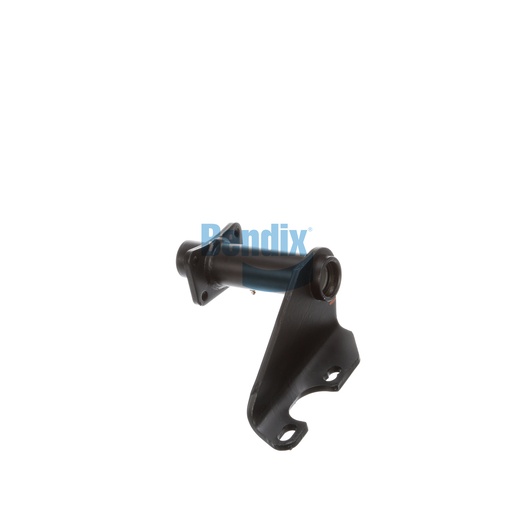

The Bendix bracket assembly is an essential part of your braking system, designed for optimal performance and reliability. Featuring a full arm style, this assembly includes nylon bushings that help reduce friction and enhance durability. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 80° CCW, it offers versatility and precision in installation. Manufactured in the United States, this bracket assembly is built to last, ensuring your vehicle's braking system operates smoothly under heavy-duty conditions. When you need quality OEM parts, trust Source One Parts Center for genuine Bendix products that keep your commercial vehicle running safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.4 lb
