K080999

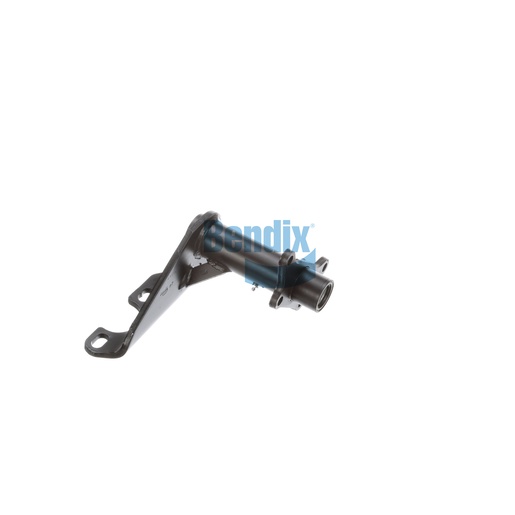

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is a crucial component designed for the highest performance in your commercial vehicle's foundation drum braking system. Crafted in the United States, this assembly features a robust full-arm style with nylon bushings that enhance durability, reducing friction and wear. Its carefully engineered design ensures compatibility with various truck models, making it a versatile choice for fleet maintenance. With precise dimensions and a weight of 12.84 lbs, this bracket assembly is built to withstand the demands of heavy-duty trucking, ensuring that your braking system operates efficiently and effectively. By choosing Bendix, you are investing in the safety and reliability of your vehicle. Source One Parts Center is the leading source for genuine Bendix OEM parts, providing you with the assurance of quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.84 lb
