K080998

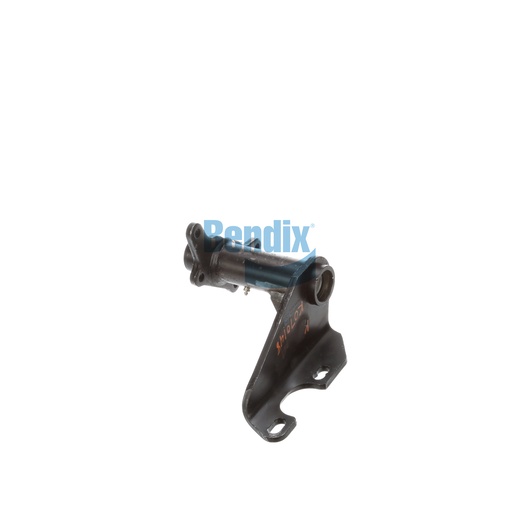

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your truck's braking system with the Bendix Bracket Assembly, designed to provide essential support for air chambers and camshafts. This assembly boasts a full arm style and a thoughtfully engineered gusset that enhances its strength and stability under pressure. With nylon bushings and a camshaft bracket angle of 50° counterclockwise, this component ensures optimal functionality and longevity. The adjustable slack length ranges from 5.50 to 6.00 inches, allowing for a perfect fit in various vehicle applications. Manufactured in the United States, this bracket assembly meets high-quality standards to guarantee performance and safety. Trust Source One Parts Center as your go-to source for genuine Bendix OEM parts, ensuring your commercial vehicles remain road-ready and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.84 lb
