K080961

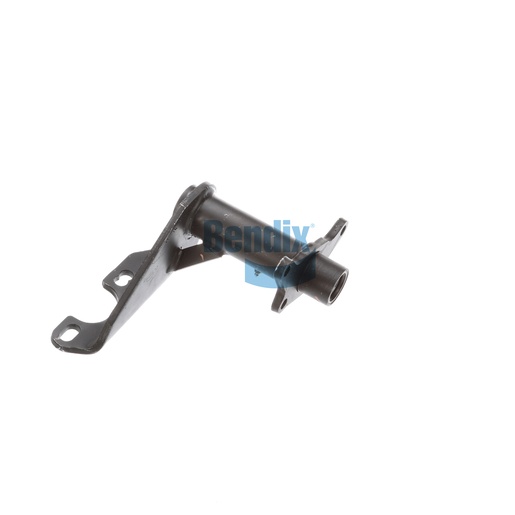

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your truck's braking system, providing the stability and support necessary for safe operation. Designed with a full arm style and a gusset angle of 70° clockwise, it ensures robust performance under demanding conditions. This assembly features durable nylon bushings that reduce friction, enhancing the lifespan and efficiency of your braking components. Measuring 11.50 inches centerline to centerline and weighing 12.95 pounds, it is both lightweight and easy to install. Ideal for maintenance or upgrades, this bracket assembly is crucial for maintaining optimal braking performance. Source One Parts Center is the best place to find authentic Bendix OEM parts, ensuring quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.95 lb
