K080893

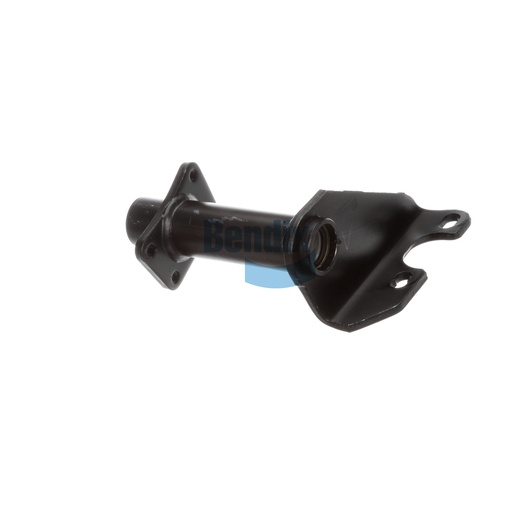

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a fundamental component for the effective operation of foundation drum brakes in commercial trucks. This assembly is designed with a single gusset for enhanced support and stability, ensuring reliable performance under heavy loads. Weighing 5.7 kg and measuring 11.56 inches centerline to centerline, it is built to withstand the rigors of daily use. Featuring durable nylon bushings for smoother operation, this bracket assembly is engineered to minimize wear and extend the lifespan of your braking system. Regular maintenance and timely replacement of worn brackets are crucial for the safety and efficiency of your vehicle. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, providing you with quality components that enhance your vehicle's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
