K080892

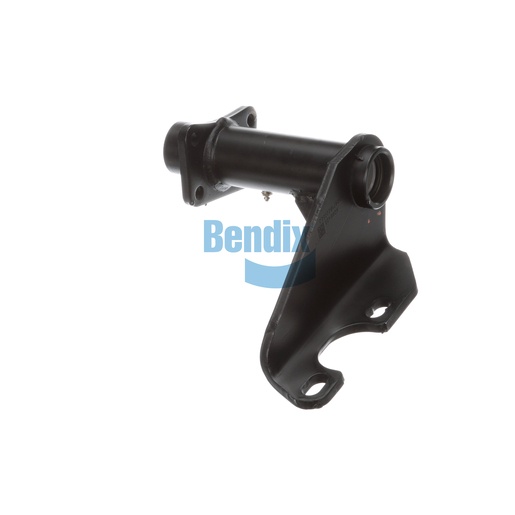

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly stands as a testament to superior engineering and design, crafted to provide optimal support for air chambers and camshafts in drum brake systems. Made in the USA with a single gusset and full arm style, this bracket assembly is designed for durability and effective load distribution. The nylon bushings enhance performance by minimizing friction and wear, ensuring a longer lifespan. With a camshaft bracket angle of 70° CCW and a slack length between 5.50 inches and 6.00 inches, it delivers versatility for various applications. Additionally, the assembly's centerline length of 11.56 inches makes it suitable for a range of commercial truck configurations. This bracket is not only reliable but also crucial for maintaining the integrity of your braking system. When you choose to purchase from Source One Parts Center, you’re guaranteed genuine Bendix OEM parts that embody quality and performance for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12 lb
