K080782
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

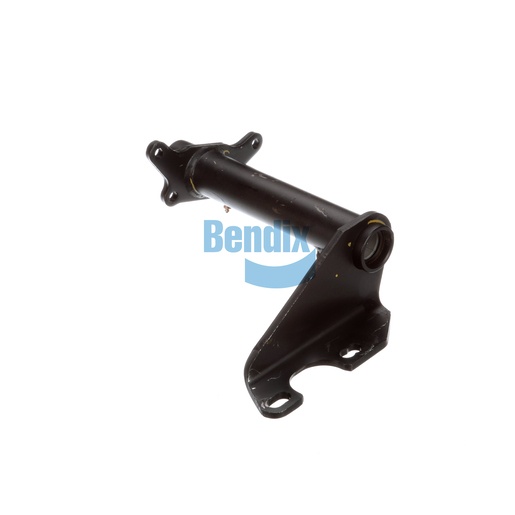

The Bendix Bracket Assembly is a crucial component for the braking system of commercial vehicles, providing sturdy support for air chambers and camshafts. Engineered with precision, this assembly features a single gusset for added strength and durability, making it suitable for heavy-duty applications. The nylon bushings incorporated into the design help to minimize friction and wear, extending the lifespan of your braking system components. With a camshaft bracket angle of 70° CCW, this assembly ensures optimal alignment and efficient operation, enhancing overall braking performance. Choosing Bendix means equipping your vehicle with high-quality parts that meet rigorous safety standards. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, delivering the reliability and performance your commercial vehicle requires.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
16.12 lb
