K080773
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

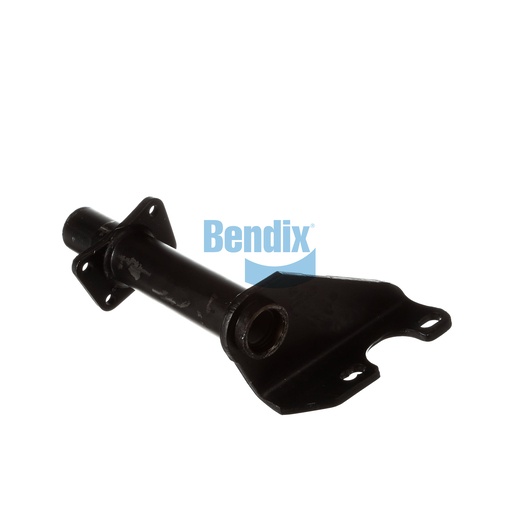

The Bendix Bracket Assembly is an essential component for foundation drum brakes, providing necessary support to enhance braking efficiency and reliability. With a single gusset and full arm style design, this assembly is engineered for strength and durability, making it ideal for heavy-duty applications. The camshaft bracket angle of 75° CW and a centerline length of 15.06 inches ensure accurate fitment and alignment for optimal brake performance. Made from high-quality materials, this assembly promotes longevity and reduces the frequency of maintenance. Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring you receive top-quality components that keep your commercial vehicles safe and operational.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.21 lb
