K080746
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

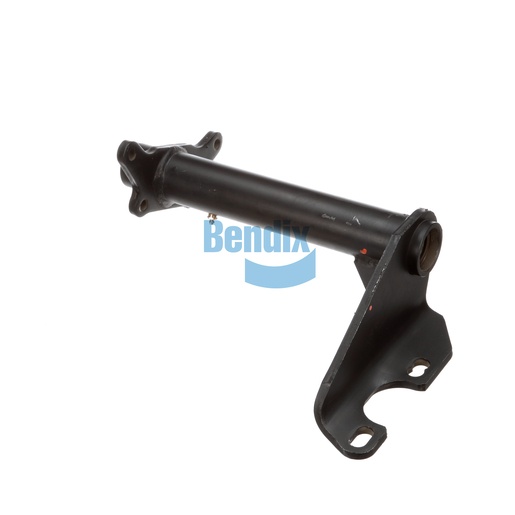

The Bendix Bracket Assembly is a critical component for your vehicle's foundation drum brakes, designed for strength and reliability. Made in the USA, this assembly features a full arm style and single gusset design, providing robust support for various braking applications. The nylon and bronze bushings ensure smooth operation, significantly reducing wear and extending the life of your braking components. With a camshaft bracket angle of 64° CCW and a centerline-to-centerline measurement of 17.69 inches, this assembly is engineered for optimal fit and performance. When looking for genuine Bendix OEM parts, Source One Parts Center is the premier destination, delivering quality and reliability for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.9 lb
