K080743
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

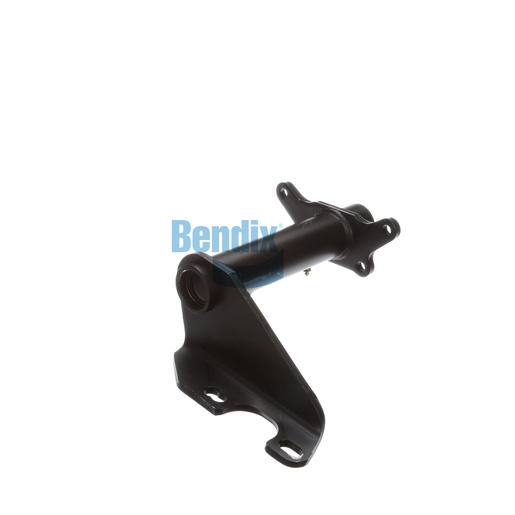

The Bracket Assembly is a key component in your truck's braking system, specifically designed to support foundation drum brakes. Made in the United States, this assembly features a full arm style with a single gusset for added strength and stability. With an adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 80° clockwise, it is engineered to provide optimal performance and adaptability under various driving conditions. Weighing 6.4 kg (14.0 lb), this assembly is both lightweight and durable, ensuring long-lasting functionality. By investing in this high-quality bracket assembly, you can enhance the reliability of your braking system, contributing to overall vehicle safety. For your genuine Bendix OEM parts, Source One Parts Center stands out as the best place to shop, providing trusted products for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
