K080718

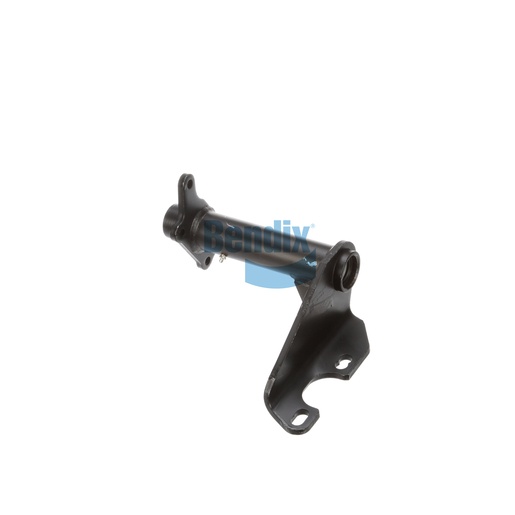

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is crucial for the effective performance of your vehicle's braking system. Designed for foundation drum brakes, this assembly features a robust construction with nylon and bronze bushings, ensuring durability and longevity. Weighing 5.8 kg, it is engineered for easy installation, allowing for quick replacements that minimize downtime for your fleet. The assembly's precise design promotes optimal alignment and function, enhancing the overall braking efficiency. Ideal for fleet managers looking to optimize safety and performance, this assembly is a necessary addition to your vehicle. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you receive top-notch quality and support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
830230
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.75 lb
