K080716

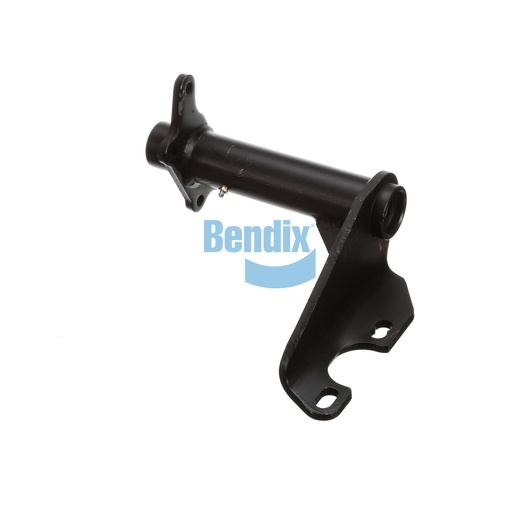

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical part of Bendix foundation drum brakes, designed to provide exceptional reliability and performance for your commercial vehicle. This assembly features a full arm style and nylon bushings, offering a secure connection that can withstand the demands of heavy-duty applications. With a camshaft bracket angle of 26° CCW and a slack length of 5.50 to 6.00 inches, it allows for precise adjustments and compatibility with various brake systems. Its robust construction is essential for maintaining brake alignment, ensuring efficient and effective braking power. Weighing only 6.5 kg, this assembly combines strength with a lightweight design, making it suitable for heavy-duty use. For the best in genuine Bendix OEM parts, Source One Parts Center is your preferred source, ensuring you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Camshaft Bracket Angle
26° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.4 lb
