K080609

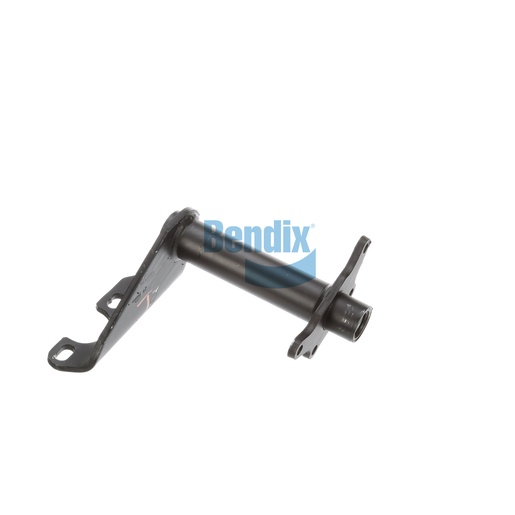

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component designed to ensure the stability and efficiency of your vehicle's braking system. Constructed with durable nylon and designed with a full arm style, this assembly provides superior support for air chambers and camshafts. The camshaft bracket angle of 108° clockwise ensures precise alignment, playing a crucial role in the overall performance of the braking system. With an adjustable slack length and a robust design, this assembly is built to withstand the demands of heavy-duty applications. Proudly made in the USA, this part reflects Bendix's commitment to quality. For genuine Bendix OEM parts, Source One Parts Center is your best source, ensuring you receive reliable components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CW
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.08 lb
