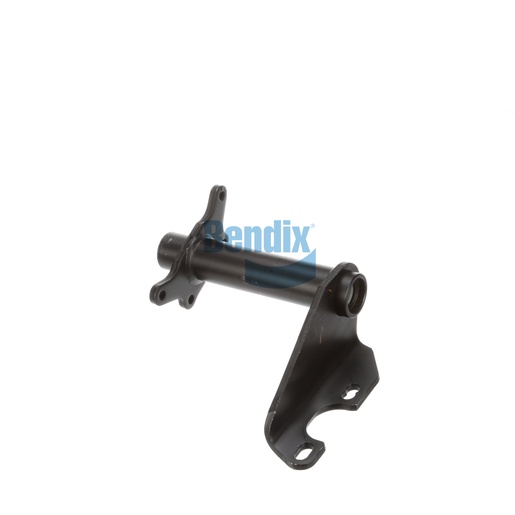

K080608
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to deliver unwavering support to air chambers and camshafts in the demanding environment of commercial trucking. Boasting full arm style construction with a single gusset, this assembly is built to endure the stresses of heavy loads and challenging terrains. It features nylon inboard and outboard bushings that enhance its resilience, ensuring reliable operation throughout its lifespan. With an adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 108 degrees counterclockwise, it facilitates precise installation and alignment. Weighing just 14.4 lbs, this assembly is designed for easy handling without compromising strength. For those who prioritize quality and reliability, Source One Parts Center is the go-to source for genuine Bendix OEM parts, providing everything you need to keep your fleet running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CCW
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.4 lb
