$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

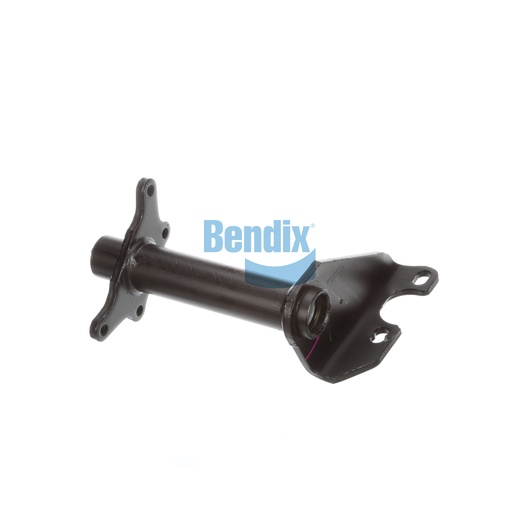

The Bendix Bracket Assembly is a crucial component in the braking system of commercial vehicles, designed to provide exceptional support and stability for drum brakes. With a full arm style and nylon bushings, this assembly ensures durability and longevity, reducing the likelihood of wear and tear over time. It features a camshaft bracket angle of 50° CW, making it ideal for precise alignment and efficient functionality. The assembly's slack length ranges from 5.50 to 6.00 inches, accommodating various installation requirements while maintaining optimal performance. Weighing in at 14.01 lbs, it strikes a balance between strength and manageability, making it easy to handle during installation. Sourced directly from Bendix, this OEM part guarantees compatibility and reliability for your commercial truck. For genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, ensuring quality and service you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.01 lb
