$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

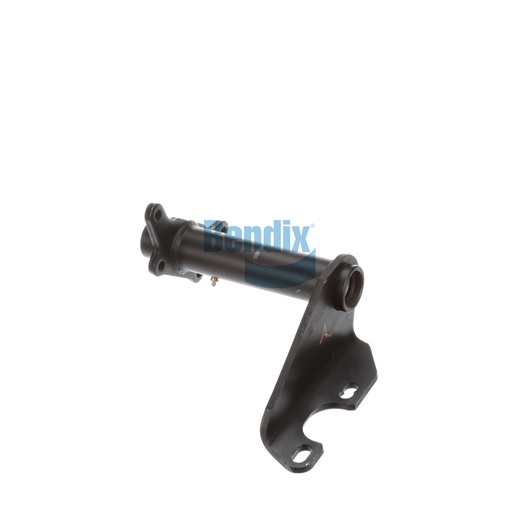

The Bracket Assembly is engineered to provide unparalleled support for air chambers and camshafts within drum brake systems. With its robust nylon bushings, this assembly is designed for high performance and longevity in heavy-duty applications. Boasting a camshaft bracket angle of 50° CCW, this assembly facilitates precise alignment and seamless integration into your braking system. The adjustable slack length of 5.50 to 6.00 inches allows for customization to meet specific installation needs. Crafted in the United States, this bracket assembly exemplifies Bendix's commitment to quality and reliability. For those looking for genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, ensuring you receive top-notch components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
