DESCRIPTION

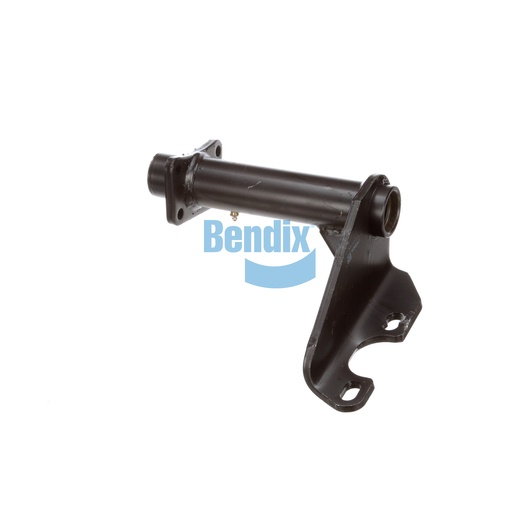

The Bracket Assembly from Bendix is expertly crafted to provide the necessary support for air chambers and camshafts in commercial vehicle braking systems. This assembly features a full arm style and is made with high-quality nylon and bronze bushings for enhanced durability. With a camshaft bracket angle of 70° CCW and an adjustable slack length between 5.50 and 6.00 inches, it ensures optimal fitment and performance. Weighing 6.3 kg (13.94 lb), this assembly is designed for easy installation and maintenance, helping to reduce downtime for your fleet. For reliable and genuine Bendix OEM parts, Source One Parts Center is the best option, ensuring you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.94 lb
