K080334

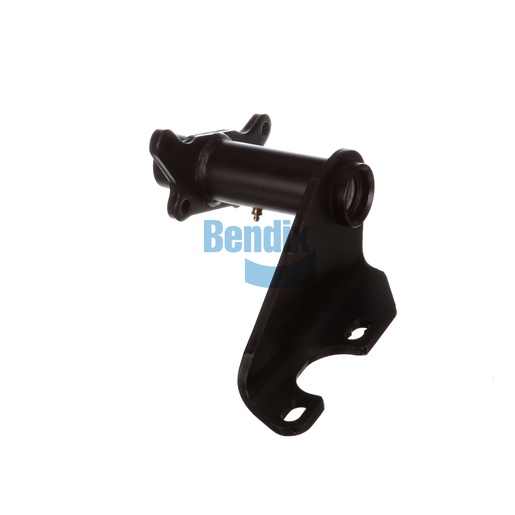

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed for Bendix foundation drum brakes, ensuring reliable performance and safety for your commercial vehicle. This assembly features a full arm style with nylon bushings, providing a durable and secure fit. With a camshaft bracket angle of 64° CCW and a slack length of 5.50 to 6.00 inches, it allows for precise adjustments and compatibility with various configurations. Its robust construction is essential for maintaining brake integrity, ensuring efficient and effective braking under pressure. Weighing only 5.7 kg, this assembly strikes the perfect balance between strength and lightweight design, making it suitable for heavy-duty applications. Source One Parts Center is the best choice for genuine Bendix OEM parts, guaranteeing quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
