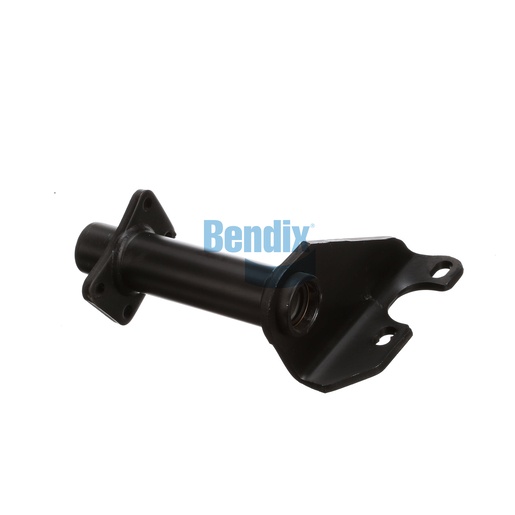

K080011
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Bracket Assembly is a vital component for ensuring the integrity of your truck's braking system. This assembly is built with high-quality materials and designed for durability, making it ideal for the demands of heavy-duty applications. Featuring a full arm style and nylon bushings, it provides reliable support and enhances the overall performance of your braking system. Its straightforward installation process means less downtime for your fleet, allowing you to maintain efficiency on the road. By choosing this premium bracket assembly, you help ensure safer driving experiences for your operators. Source One Parts Center is the best destination for genuine Bendix OEM parts, providing you with high-quality components tailored to your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
