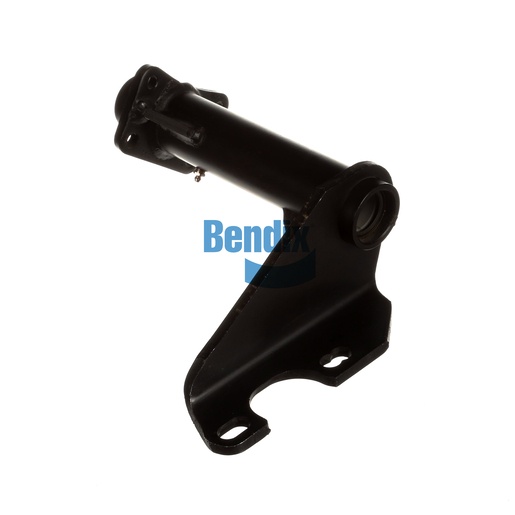

K079900
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate the performance of your Bendix drum brake system with this expertly designed Bracket Assembly. This assembly includes a full arm style and a triple gusset, ensuring maximum strength and stability during operation. Engineered with nylon and bronze bushings, it is built to withstand the demands of commercial use. The camshaft bracket angle of 50° CCW enhances the assembly's ability to support air chambers and camshafts effectively. With a slack length of 5.50 to 6.00 inches and a centerline length of 14.31 inches, this bracket assembly is versatile enough for various truck configurations. Weighing 14.4 lbs, it offers a lightweight solution without compromising performance. Choose this bracket assembly for reliable braking performance and enhanced safety on the road. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14.4 lb
