K079864

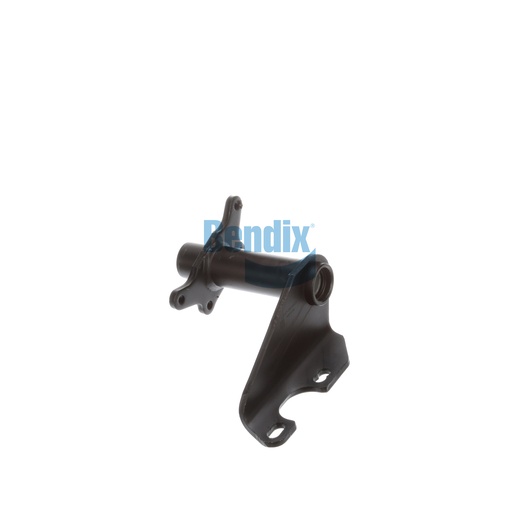

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your vehicle's braking system with the Bendix Bracket Assembly, a critical component for foundation drum brakes. Manufactured in the USA, this assembly reflects Bendix's commitment to high-quality performance and reliability. With an innovative design that includes durable nylon bushings, this assembly ensures a secure fit and optimal operation under demanding conditions. Weighing 5.7 kg, it is engineered to support the camshaft's alignment and overall braking functionality, which is essential for safe driving. Whether you're a fleet manager or a dedicated operator, this assembly is a smart investment for maintaining your vehicle's safety and efficiency. Trust Source One Parts Center as your source for genuine Bendix OEM parts, ensuring you receive the best quality for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CCW
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.59 lb
