K079614
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

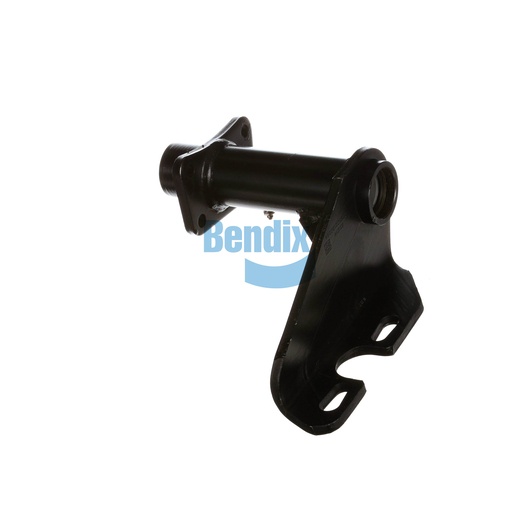

The Bendix Bracket Assembly is expertly crafted to provide robust support for foundation drum brakes, featuring a single gusset design that enhances its strength and durability. This assembly is designed with a 40° gusset angle and high-quality nylon bushings, ensuring it can withstand the rigors of heavy-duty use. The camshaft bracket angle of 80° counterclockwise allows for precise positioning, which is crucial for the effective operation of your braking system. With a length of 11.56 inches, this bracket is versatile enough to fit various configurations, making it an essential component for fleet maintenance. By choosing Bendix, you are ensuring safety and performance on the road. Source One Parts Center is your best option for sourcing genuine Bendix OEM parts, delivering quality you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
80° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.42 lb
