K079609

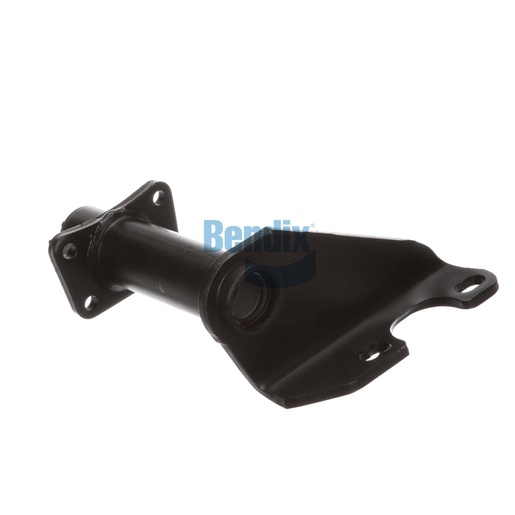

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your commercial vehicle's foundation drum brake system, engineered for durability and robust performance. This assembly features a full arm style and nylon bushings, ensuring it can withstand the rigors of heavy-duty applications while maintaining a lightweight profile. With a camshaft bracket angle of 90° clockwise, it allows for seamless installation with optimal alignment, enhancing overall braking efficiency. Ranging from 5.50 inches, its adjustable length accommodates various setups, while weighing in at 12.3 lbs, it is manageable for installation. The single gusset design ensures added strength and stability, making it a preferred choice for fleet operators. When it comes to finding genuine Bendix OEM parts, Source One Parts Center is the best source for quality components that meet industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.3 lb
