K079608

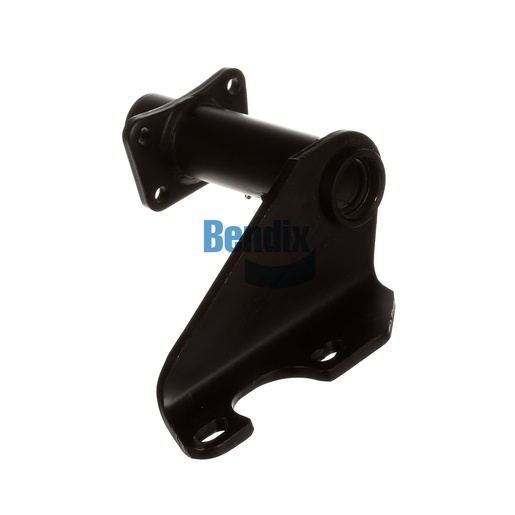

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral part of the foundation drum brake system, designed to provide unyielding support and durability. Featuring a full arm style and a single gusset, it is engineered to withstand the rigors of heavy-duty applications while ensuring optimal performance. The assembly includes nylon bushings for enhanced longevity and reduced friction. With an adjustable slack length of 5.50 IN to 6.00 IN, this bracket assembly is versatile and compatible with a variety of braking systems. Ideal for fleet maintenance and repair needs, this part guarantees reliability and efficiency. For purchasing genuine Bendix OEM parts, Source One Parts Center offers the best selection and service, making it the go-to source for commercial vehicle operators.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.4 lb
