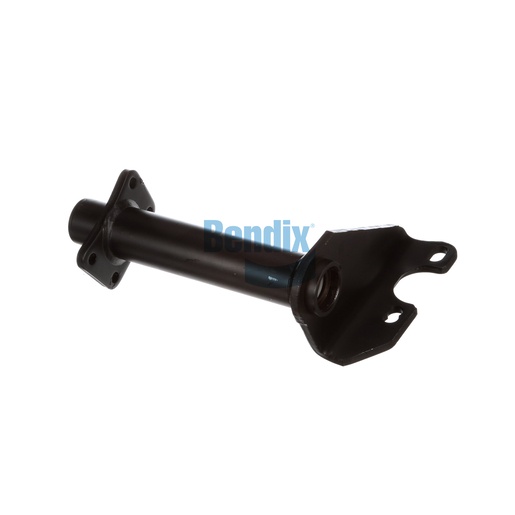

K079495
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a premium component designed for foundation drum brakes, providing essential support for air chambers and camshafts. With a full arm style and nylon bushings, this assembly ensures smooth operation and enhanced durability under heavy loads. The gusset design adds strength and stability, making it ideal for demanding commercial applications. Weighing approximately 14.46 pounds and featuring an easy installation process, this bracket assembly is both functional and efficient. At Source One Parts Center, we pride ourselves on offering genuine Bendix OEM parts, ensuring your vehicles are equipped with the best quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.46 lb
