K079325

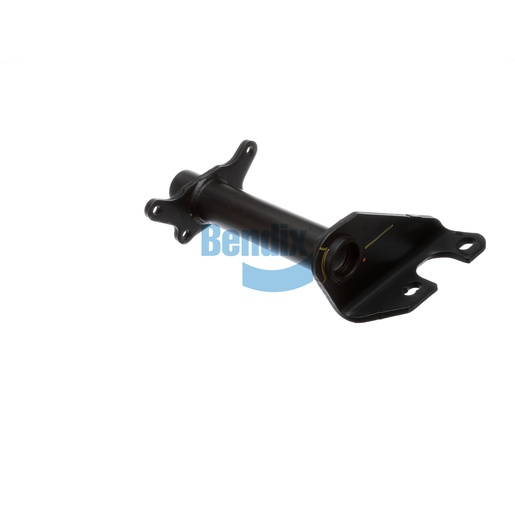

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is expertly designed to provide essential support for air chambers and camshafts in foundation drum brake systems. With a single gusset and full arm style, this assembly delivers strength and stability, ensuring optimal braking performance. It features an adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 90° CW, allowing for precise alignment and installation. Manufactured from high-quality nylon, this bracket assembly is engineered to withstand the rigors of heavy-duty applications. Made in the USA, it reflects Bendix's commitment to quality and reliability. Source One Parts Center is your top choice for genuine Bendix OEM parts, providing peace of mind and assurance in your purchases.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.62
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
8.01 lb
