K079324

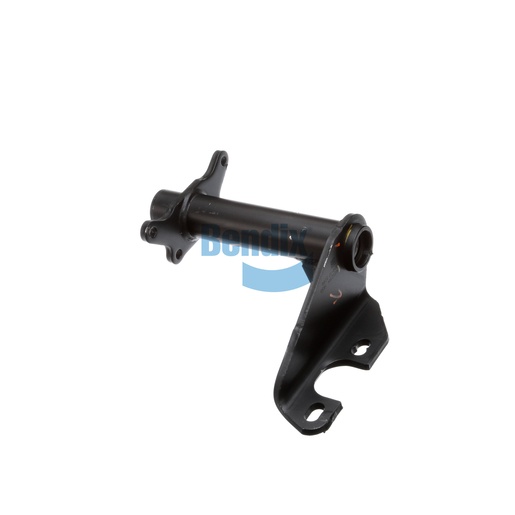

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital part of the braking system, designed to securely support air chambers and camshafts in heavy-duty applications. Its sturdy single gusset and full arm design provide the necessary strength to withstand rigorous driving conditions. Made from high-quality materials, this assembly features nylon bushings that facilitate smooth operation and longevity. The camshaft bracket angle of 90° CCW and a centerline length of 14.62 inches ensure compatibility with various braking systems, making installation straightforward. This essential component contributes to the overall performance and safety of commercial vehicles by ensuring reliable brake function. For genuine Bendix OEM parts, trust Source One Parts Center, your leading supplier of high-quality commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.62
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.42 lb
