K079188

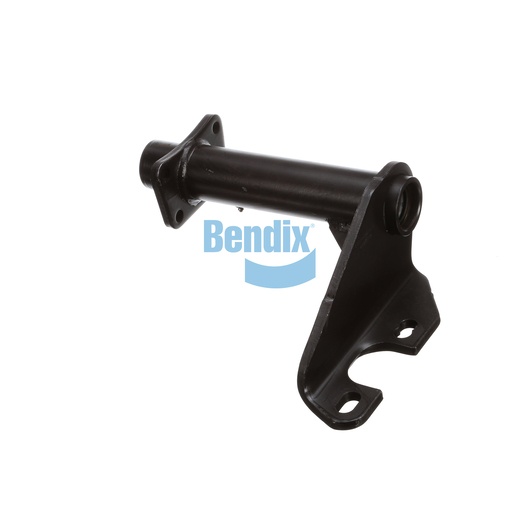

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral part of your truck's foundation drum brakes, designed to offer robust support and reliability. With a single gusset and full arm style, this assembly ensures exceptional strength and stability. The gusset angle of 40° and camshaft bracket angle of 90° CCW provide precise alignment, enhancing overall braking performance. Constructed with nylon bushings for both inboard and outboard sides, it promotes smooth operation and durability. Its slack length ranges from 5.50 to 6.00 inches, and it features a centerline to centerline length of 14.63 inches, making it versatile for various applications. Choose Source One Parts Center for your Bendix OEM parts, as we deliver quality components that enhance the performance of your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.63
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
8.64 lb
