$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

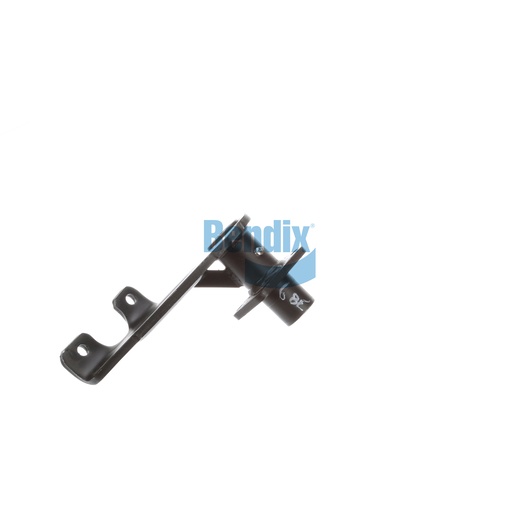

The Bendix Bracket Assembly is a critical component engineered to support your vehicle's foundation drum brakes, providing the stability and reliability needed for safe operation. With a single gusset design and durable construction, it effectively handles the demands of heavy-duty use. The assembly features nylon bushings that reduce friction and wear, promoting seamless operation. Measuring 8.63 inches from centerline to centerline, it is designed for compatibility with your existing braking system. Trust Source One Parts Center for genuine Bendix parts that ensure the safety and performance of your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
278° CW
Gusset Angle
53°
Length (Slack Length)
6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.09 lb
