K079067

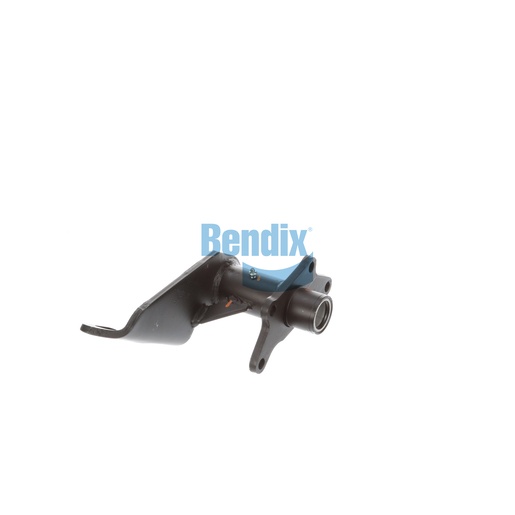

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is designed to provide essential support and stability within your foundation drum brake system. This assembly features a scalloped arm style and durable nylon bushings, enhancing its strength and longevity in demanding conditions. The single gusset design ensures that it can withstand the stresses of heavy-duty applications while allowing for easy installation. By ensuring proper alignment of brake components, this bracket contributes to a more effective braking process, enhancing overall vehicle safety. For genuine Bendix OEM parts that you can count on, Source One Parts Center is the leading supplier for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
312° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.5 lb
