K078994

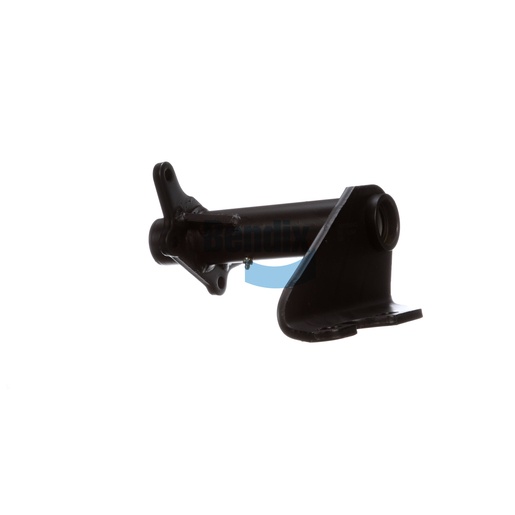

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your truck's braking system, providing necessary support and structure for optimal braking performance. Its durable design ensures that it can withstand the rigors of heavy-duty applications, making it a reliable choice for commercial vehicles. Engineered for easy installation, this bracket assembly contributes to the overall safety and efficiency of your braking system. With its high-quality construction, it ensures that your vehicle's components remain properly aligned for effective operation. For genuine Bendix parts that you can trust, Source One Parts Center is the best destination for all your commercial truck needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
13.43 lb
