K078916

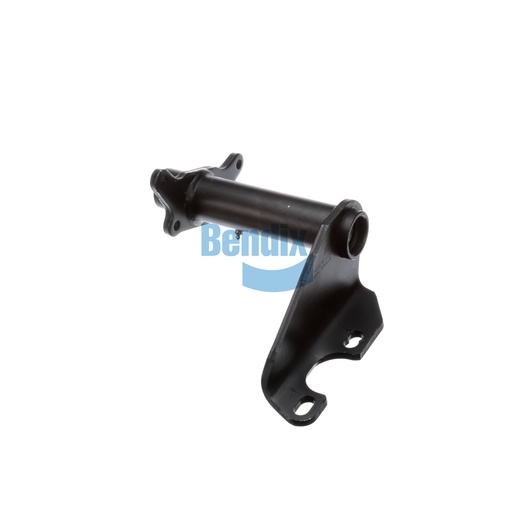

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component in ensuring the reliability and efficiency of your truck's braking system. Featuring a full arm style and constructed with durable nylon and bronze bushings, this assembly is designed to withstand the rigors of heavy-duty use. With a camshaft bracket angle of 64° counterclockwise and an adjustable slack length of 5.50 to 6.00 inches, it allows for a precise fit and easy installation. This bracket effectively supports both the air chamber and camshaft, contributing to smooth and efficient brake operation. For sourcing genuine Bendix parts, Source One Parts Center is your ideal destination, providing authentic components that enhance the performance of your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.45 lb
