K078599

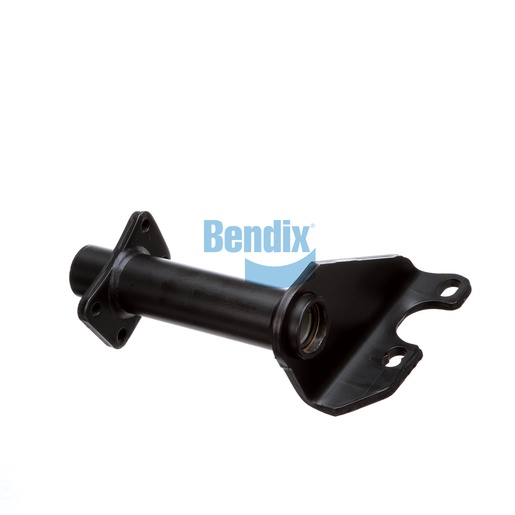

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component of your truck's braking system, designed to effectively support the air chamber and camshaft. Engineered for durability, this assembly features a robust design with a single gusset and high-quality nylon and bronze bushings, ensuring optimal performance even in heavy-duty conditions. With a camshaft bracket angle of 69° CW, this assembly enhances the reliability and responsiveness of your braking system, promoting safety on the road. This part is easy to install and maintain, making it an ideal choice for fleet operators and individual truck owners alike. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, providing high-quality components that keep your vehicles running efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.01 lb
