K078598

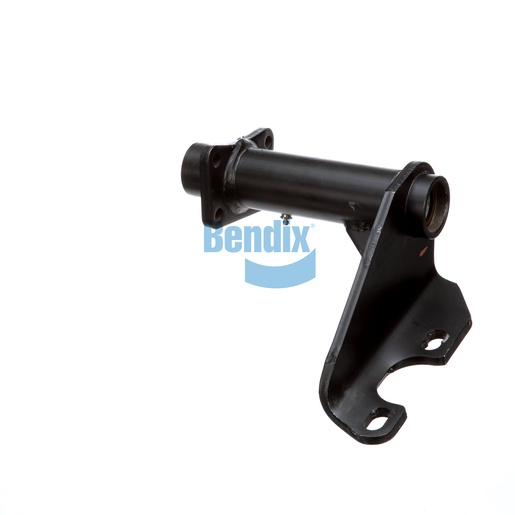

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a robust solution for supporting air chambers and camshafts in commercial drum brake systems. This assembly features a single gusset and a full arm style, with a 40° gusset angle that enhances structural integrity. The durable construction, including nylon inboard and bronze outboard bushings, ensures long-lasting performance while minimizing wear and tear. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 69° CCW, this part is ideal for a range of applications. When it comes to sourcing Bendix parts that guarantee reliability, Source One Parts Center is the best choice for genuine OEM components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.25 lb
