K078513

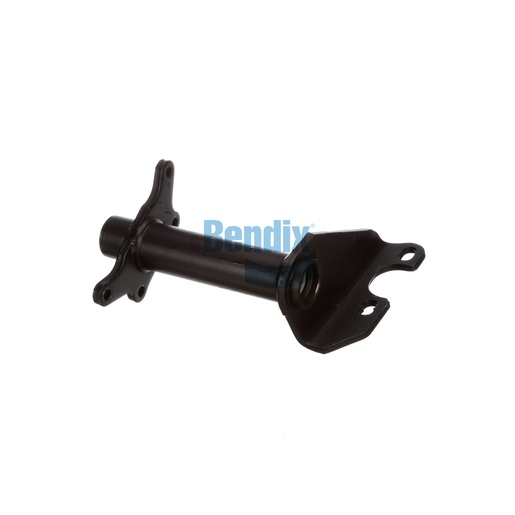

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered to provide robust support and stability in foundation drum brake applications. Its durable construction ensures that it can withstand the rigors of heavy-duty use, making it an ideal choice for commercial vehicles that require reliable performance. The assembly features a full arm style and is equipped with nylon and bronze bushings, allowing for smooth operation and reduced wear over time. Easy to install and maintain, this Bracket Assembly is essential for maintaining the integrity of your brake systems. With Source One Parts Center as your supplier, you can trust that you are getting genuine Bendix OEM parts that deliver the quality and reliability your fleet demands.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.8 lb
