K078510

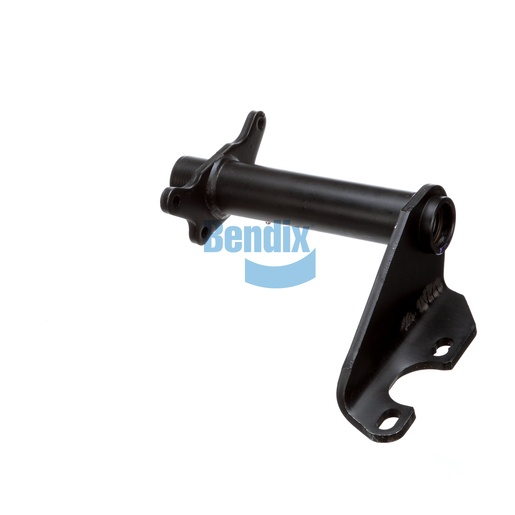

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly engineered to provide essential support and stability to your truck's braking system. This assembly features a full arm style with durable nylon bushings, ensuring long-lasting performance. Weighing in at 6.6 kg (14.5 lb), it is designed for easy installation while maintaining the strength needed for heavy-duty applications. With precise dimensions and a camshaft bracket angle of 90° CCW, this assembly ensures optimal alignment and functionality. It is a necessary component for maintaining your vehicle's braking efficiency. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the top destination for quality products and exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
