$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

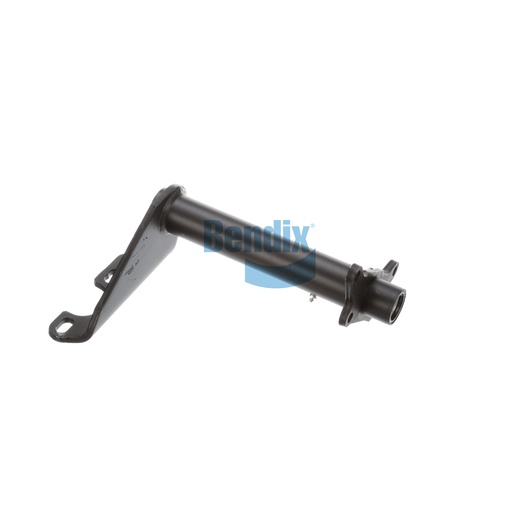

The Bendix Bracket Assembly serves as a critical component for the stability and performance of your commercial truck's braking system. Designed with a full arm style and durable nylon bushings, this assembly ensures reliable support for air chambers and camshafts, enhancing overall braking efficiency. Its robust construction and precise engineering make it suitable for heavy-duty applications, capable of withstanding the demands of the road. Manufactured in the United States, this bracket assembly adheres to high-quality standards, promising longevity and performance. By investing in this essential component, you can minimize maintenance issues and enhance the safety of your vehicle. Choose Source One Parts Center for your Bendix OEM parts, guaranteeing authentic quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.67 lb
