$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

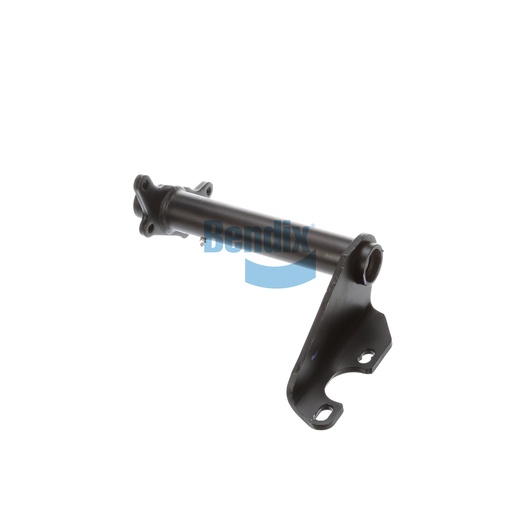

The Bracket Assembly is a key support component in foundation drum brake systems, engineered for durability and reliable performance. Its robust design features nylon bushings that reduce wear and provide smooth operation, ensuring your braking system functions effectively under heavy loads. This assembly is easy to install and maintain, making it an ideal choice for fleet managers looking to streamline their maintenance processes. For authentic Bendix OEM parts, Source One Parts Center is your trusted partner, delivering quality components that enhance the performance and safety of your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
16.5 lb
