$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

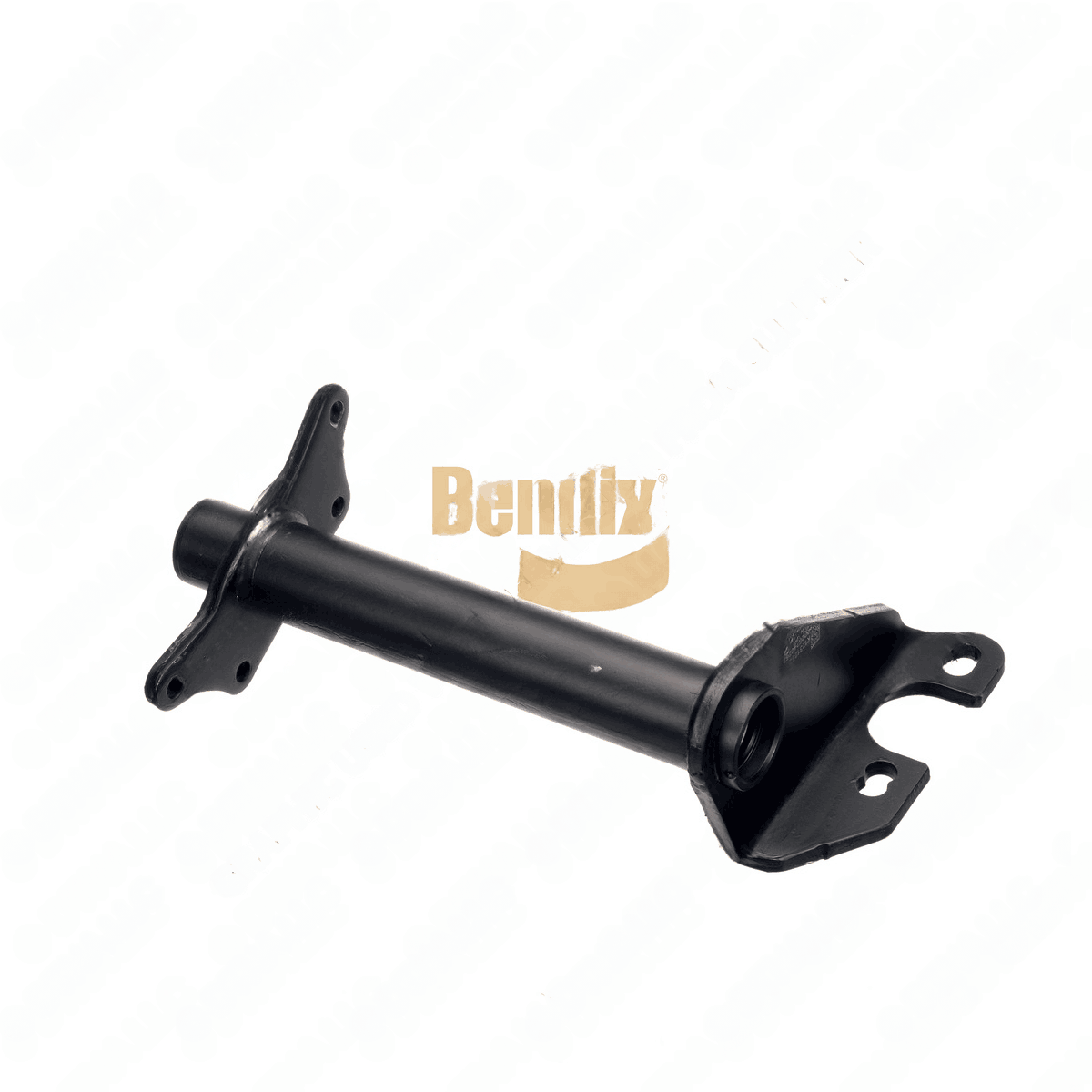

The Bracket Assembly is a crucial part of the Bendix foundation drum brake system, designed to provide essential support for optimal braking performance. Engineered with a full arm style and single gusset, this assembly is built to withstand the rigorous demands of commercial vehicle operation. The assembly features nylon bushings that ensure smooth operation while minimizing wear, which is crucial for maintaining the efficiency of your braking system. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 65° CW, it guarantees a precise fit for various applications. Weighing 15.5 lbs, it is both robust and manageable, making installation straightforward. This assembly plays a pivotal role in maintaining the integrity of your braking system. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.69
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.5 lb
