K078418

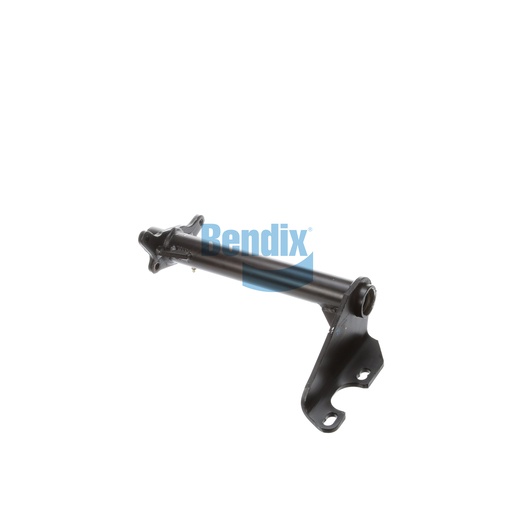

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide robust support for air chambers and camshafts within your vehicle's braking system. Its triple gusset design and full arm style ensure exceptional strength and stability under heavy loads. Measuring between 5.50 and 6.00 inches in slack length and 21.06 inches in centerline distance, this assembly is versatile for various configurations. Constructed with nylon bushings, it offers reduced friction and improved durability. The camshaft bracket angle of 70 degrees CCW facilitates precise adjustments for enhanced braking performance. Trust Source One Parts Center to supply you with authentic Bendix OEM parts, ensuring top-quality solutions for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
21.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
18.68 lb
