K078416
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

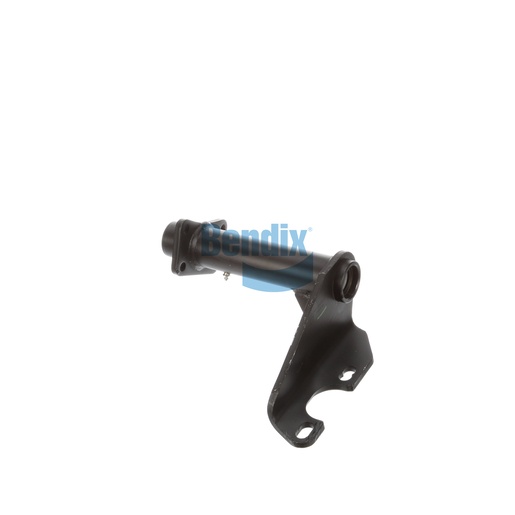

The Bracket Assembly is a vital component in your commercial vehicle's foundation drum brake system, designed for optimal stability and performance. This assembly features a single gusset design and is constructed with high-quality nylon and bronze bushings for enhanced durability. The camshaft bracket angle of 57° CCW allows for precise positioning, ensuring that your braking system operates effectively. Built to withstand the demands of heavy-duty use, this bracket assembly is perfect for both maintenance and new installations, contributing to the overall safety and reliability of your fleet. When looking for genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
57° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.97 lb
