$159.95
$207.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

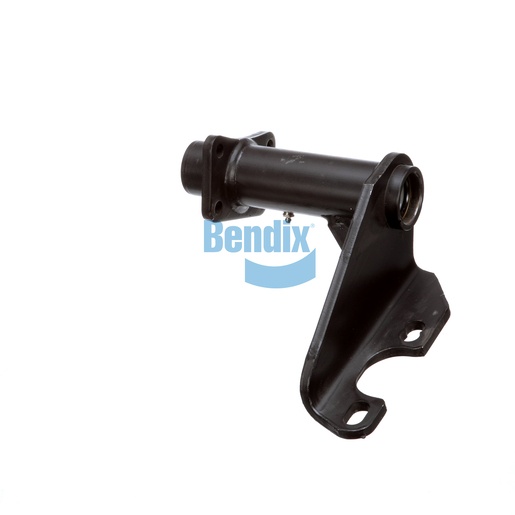

Introducing the Bracket Assembly, designed for exceptional performance in your vehicle's braking system. This assembly features a single gusset and full arm style, providing the strength needed for heavy-duty operations. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 60° counter-clockwise, it promotes efficient braking performance. Weighing 5.7 kg (12.5 lb), this durable component is engineered for reliability and longevity. Trust Source One Parts Center for your Bendix OEM parts, where you can find top-quality components tailored for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
