K078334

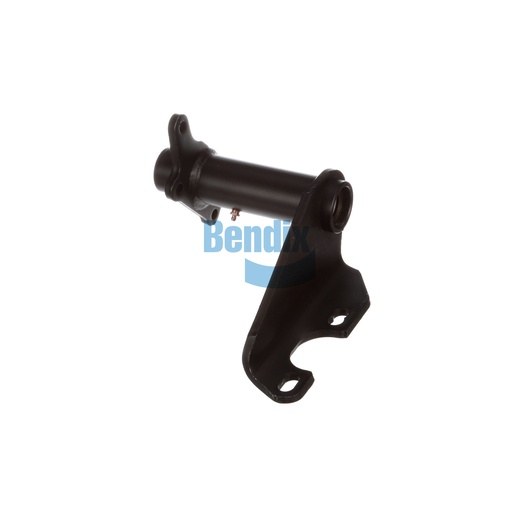

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your braking system with the Bendix Bracket Assembly, an essential component designed for foundation drum brakes. Featuring a full arm style and a camshaft bracket angle of 40° CCW, this assembly ensures optimal positioning and stability within the system. With a net weight of 5.7 kg, it is designed for commercial use, providing the strength necessary to withstand the demands of heavy-duty applications. The durable nylon bushings help reduce wear and friction, promoting smoother operation and enhancing the longevity of your braking components. Measuring 11.56 inches in length, this assembly fits various configurations, making it a versatile choice for your vehicle. For those seeking reliable and high-quality braking solutions, Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring your commercial vehicle stays safe and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
40° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.61 lb
