K078333

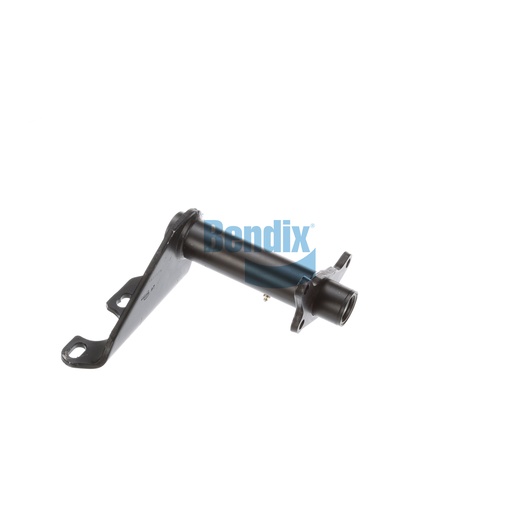

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide essential support for your vehicle's foundation drum brakes, enhancing overall braking performance. With a full arm style and single gusset design, it offers unparalleled stability, allowing your braking system to operate effectively under various loads. The assembly features nylon bushings for both inboard and outboard sections, reducing friction and wear while promoting long-lasting performance. This assembly measures 13.47 inches from centerline to centerline and is engineered for seamless integration with your existing braking system. When you opt for genuine Bendix parts from Source One Parts Center, you're ensuring that your vehicle stays safe and efficient on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.52 lb
