K078332
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

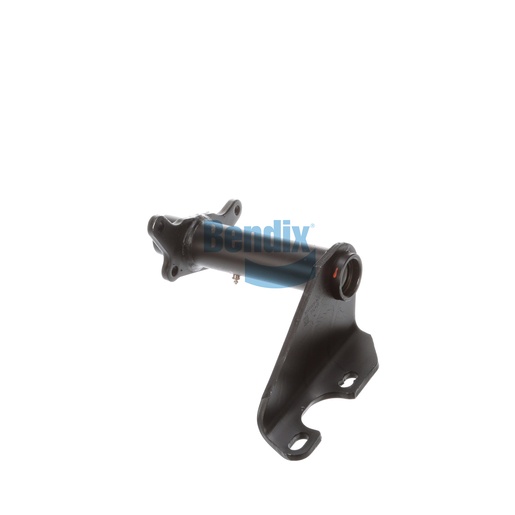

The Bendix Bracket Assembly is engineered for excellence in supporting drum brake systems within commercial vehicles. Constructed with high-quality materials, including nylon bushings, this assembly boasts a full arm style that provides robust support and alignment. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 65° counterclockwise, it ensures precise braking action and stability. This assembly is crucial for maintaining the functionality and safety of your braking system, especially in demanding operational conditions. Choose Source One Parts Center for your Bendix OEM parts, where quality and reliability are guaranteed for your commercial vehicle applications.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.5 lb
